XTAR-LINK EL3 V2- DC Power Supply for Starlink STANDARD ACTUATED (Gen 2)

Name: XTAR-LINK EL3 V2- DC Power Supply for Starlink STANDARD ACTUATED (Gen 2)
SKU: StarLink-Gen2/3in1
Price: 199999 IDR
Availability: InStock

Selamat Datang dan salam belanja~
Sebelum melakukan transaksi, mohon baca deskripsi produk untuk mengetahui kegunaannya.
Perkenalan produk:
Port serat 4 x 100 Mbps dengan konverter sakelar port Ethernet 2 x 100 Mbps dengan 4 modul optik SC 100 Mbps dan 2 port jaringan RJ45 adaptif 10/100 Mbps. Dapat mencapai 10Mbps, 100Mbps Ethernet optik dan sinyal listrik antara koneksi yang mulus. Cocok untuk Ethernet serat optik skala kecil dan kebutuhan khusus jaringan serat optik.
Fitur utama:
– 2 antarmuka Ethernet RJ45 dan 4 antarmuka optik SC, untuk mencapai pasangan bengkok dan serat, dan kabel serat dan serat optik antara konversi sinyal Ethernet
– 10 / 100Mbps port listrik adaptif mandiri, mode dupleks penuh / setengah, koneksi lurus / lintas-garis
– Mendukung kontrol aliran, dapat mencegah badai siaran
– Mendukung hingga 1536 byte paket
– Penggunaan perangkat proteksi petir, efektif mengurangi kerusakan akibat petir.
spesifikasi:
– Cocok untuk standar: IEEE802.3u 100Base-TX dan 100Base-FX
– Standar antarmuka: Port antarmuka Ethernet: RJ-45, 10 / 100Mbps (adaptif)
– Antarmuka optik: antarmuka SC, 100Mbps (dupleks penuh)
– Kabel: twisted pair: Kabel kategori 5 (jarak terjauh hingga 100m)
– Serat (mode tunggal): 8/125, 8.7 / 125, 9/125, 10/125 [mu] m
– Kontrol aliran: Kontrol aliran IEEE802.3x dupleks penuh
– Kontrol aliran tekanan balik setengah dupleks
– Indikator LED: PWR, TP, FX1, FX2, FX3, FX4
– Catu daya: AC100 ~ 240V, DC5V 2A
– Suhu lingkungan: 0 ~ + 50 ℃
– Suhu penyimpanan: – 20 ~ + 70 ℃
– Kelembaban: 5% hingga 90%
– Ukuran: 165 * 80 * 30mm
PERATURAN COMPLAIN :
1. Ketika buka paket harap di Videokan / OPEN BOOKING
2. Complain yang kami proses hanya melayani di “Pusat Complain “
3. Memberi bintang 1 / 2 / 3 kepada toko sebelum pihak kita membantu atasi masalah [TIDAK BISA KEMBALI BARANG / DANA] Jadi mohon ditunggu
#converter #fiberconverter #adapter #converterdigital #displayport #converterfiber #converteroptical #converteropticaltorca #fiber optical media converter #fibertolanconverter #hdmi #konektor #mediaconverter # fiber4port #opticalconverter # rj45 #rjfiber

Rp199.999

Compare

Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

【Why DC powered】
Living off-grid, or in a motorhome, power consumption can be critical. The Starlink uses a lot of AC power. Having to convert our battery DC power into AC through an inverter, then back to DC through a power supply is not the most efficient way to power any device. It can be converted to dc power for a significant savings in draw as well as savings from not having the dc to ac conversion.

【Why choose XTAR-LINK EL3】
Convenient & Cost-effective

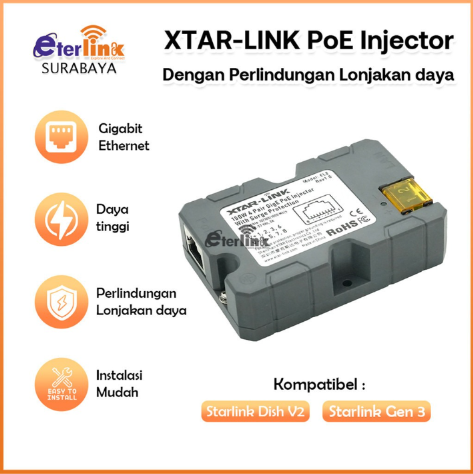

XTAR-Link EL3 Conversion combines a 10/30 volts to 48 volts booster, PoE injector, and 12V voltage regulator into one unit, providing a professional and reliable power solution for Starlink Gen 2 dish. This reducing the complexity of DIY , risks of operational failure, and also save cost of additional DIY components.

No Wire cutting, no modifying the dish or cable, and no voiding your Starlink warranty!

Dual Efficiency in Power Saving

It not only saves up to 30% of the power that run Starlink products, but also reduces the energy consumption of routers. It includes a built-in 12V regulator directly connect to 3rd party router. It significantly reduces the power loss of router from DC-AC-DC conversion.

*Need more energy saving? You can choose a suitable and shorter cable here.

Versatile Power Compatibility

With provided power cable (o-ring to Anderson), you can connect Starlink Dish directly to many 12/24V battery systems, such as those in RVs, boats and off-grid solar setups.
You can also connect Starlink Dish to the 12/24V electrical system on any vehicle or Portable Power Stations. XTAR EL3 lets you takes your Starlink wherever your journey takes you.

Independent Power Indicator and On/Off Switch
Specification
Power Input: 12V-30V/Anderson
Output: 1x PoE Port, 1x WAN Port, 1x 12V DC Port (DC5521)
Dimension: 20*21.5*5mm
Housing Material: EL3 V2 with Plastic Housing

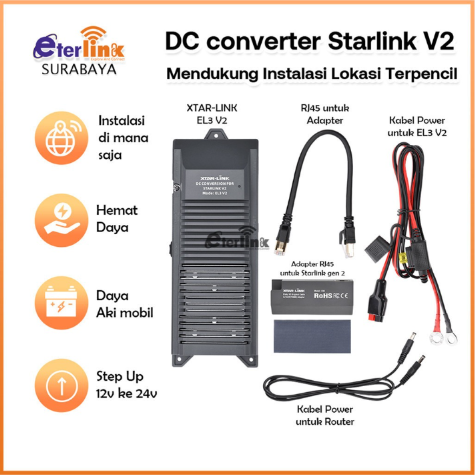

Include:
1x XTAR-Link EL3 V2
1x Power Cable of EL3 V2: O-ring to Andersion
1x RJ45 Adapter for Gen2 Dish (Aquated Standard)
1x RJ45 cable for Dishy adpater
1x Power cable for 3rd Router(DC5521 Male to DC5521 Male)
