Starlink V3 Gen3 Network Cable M20 RJ45 Waterproof Cat6 Connector IP68 8P8C Shield Ethernet Coupler Adapter Male to Female

Name: Starlink V3 Gen3 Network Cable M20 RJ45 Waterproof Cat6 Connector IP68 8P8C Shield Ethernet Coupler Adapter Male to Female
SKU: StarLink-Gen3-ExtensionCablePlus
Price: 200000 IDR
Availability: InStock

Selamat Datang dan salam belanja~
Sebelum melakukan transaksi, mohon baca deskripsi produk untuk mengetahui kegunaannya.
Perkenalan produk:

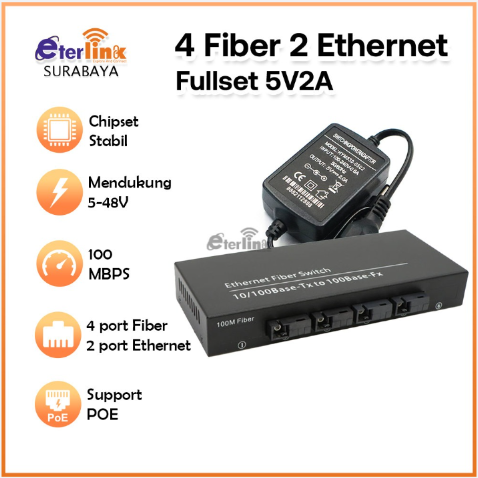

Port serat 4 x 100 Mbps dengan konverter sakelar port Ethernet 2 x 100 Mbps dengan 4 modul optik SC 100 Mbps dan 2 port jaringan RJ45 adaptif 10/100 Mbps. Dapat mencapai 10Mbps, 100Mbps Ethernet optik dan sinyal listrik antara koneksi yang mulus. Cocok untuk Ethernet serat optik skala kecil dan kebutuhan khusus jaringan serat optik.
Fitur utama:
– 2 antarmuka Ethernet RJ45 dan 4 antarmuka optik SC, untuk mencapai pasangan bengkok dan serat, dan kabel serat dan serat optik antara konversi sinyal Ethernet
– 10 / 100Mbps port listrik adaptif mandiri, mode dupleks penuh / setengah, koneksi lurus / lintas-garis
– Mendukung kontrol aliran, dapat mencegah badai siaran
– Mendukung hingga 1536 byte paket
– Penggunaan perangkat proteksi petir, efektif mengurangi kerusakan akibat petir.
spesifikasi:
– Cocok untuk standar: IEEE802.3u 100Base-TX dan 100Base-FX
– Standar antarmuka: Port antarmuka Ethernet: RJ-45, 10 / 100Mbps (adaptif)
– Antarmuka optik: antarmuka SC, 100Mbps (dupleks penuh)
– Kabel: twisted pair: Kabel kategori 5 (jarak terjauh hingga 100m)
– Serat (mode tunggal): 8/125, 8.7 / 125, 9/125, 10/125 [mu] m
– Kontrol aliran: Kontrol aliran IEEE802.3x dupleks penuh
– Kontrol aliran tekanan balik setengah dupleks
– Indikator LED: PWR, TP, FX1, FX2, FX3, FX4
– Catu daya: AC100 ~ 240V, DC5V 2A
– Suhu lingkungan: 0 ~ + 50 ℃
– Suhu penyimpanan: – 20 ~ + 70 ℃
– Kelembaban: 5% hingga 90%
– Ukuran: 165 * 80 * 30mm
PERATURAN COMPLAIN :
1. Ketika buka paket harap di Videokan / OPEN BOOKING
2. Complain yang kami proses hanya melayani di “Pusat Complain “
3. Memberi bintang 1 / 2 / 3 kepada toko sebelum pihak kita membantu atasi masalah [TIDAK BISA KEMBALI BARANG / DANA] Jadi mohon ditunggu
#converter #fiberconverter #adapter #converterdigital #displayport #converterfiber #converteroptical #converteropticaltorca #fiber optical media converter #fibertolanconverter #hdmi #konektor #mediaconverter # fiber4port #opticalconverter # rj45 #rjfiber

Rp200.000

Compare

Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

Description
Starlink V3 Gen3 Network Cable M20 RJ45 Waterproof Cat6 Connector IP68 8P8C Shield Ethernet Coupler Adapter Male to Female

Product description:

RJ45 8P8C Mother-to-mother cap 6 Ethernet dustproof and waterproof connector is used to convert the standard CAT 5 / 5e / 6 jumper into a waterproof product to connect Ethernet in harsh industrial or outdoor environments. Gaskets provide optimal protection from moisture and other pollutants, IP68. A standard-based RJ 45 connection system to ensure compatibility with existing hardware. Easy installation: it is a small, saving installation space RJ 45 mother head to mother head site installation coupler, no welding, no installation tools, just directly inserted into the standard crystal head can be quickly installed.

Size of product

1: Connector: RJ 45 core 8 pins: Material: housing nylon PA66 (UL 94 V-0), socket pin 0.5mm diameter phosphorus copper wire, pin gold plated thickness: 6 inches, waterproof rubber ring: silica gel

2: waterproof grade IP68

3: Flame retardant grade: Flame retardant grade: UL 94 V-0

4: Connection mode: plug type + thread press lock

5: Connector connection range: D (3~8) mm:

6: shell wall thickness thread type> 3mm, through-hole type: 0.3~5 mm

7: Installation size M20 * 1.5

8: Length of the network cable: 250mm

9: Connector transmission classification: CAT6 CAT6 transmission speed range is applicable to gigabit and gigabit Ethernet speed.

Electrical parameters:

Rated current: 2.4A,

Rated voltage: 250V,

Insulation resistance:> 500 MΩ,

Compressive strength of AC1000V 50HZ or 60 HZ for 1 min,

Contact resistance: <10M Ω

Ambient condition:

Operating temperature: -40~105 degrees C,

Storage temperature: -25~85 degrees Celsius;

Atmospheric pressure: 86 ~ 106 kPa.

Relative humidity: 90% RH
